Baterie do elektrického motocyklu 72V 20Ah

2024-06-19 02:49

Specifikace

Položky	Specifikace	Poznámky
Hmotnost produktu	11KG
Velikost	182*132*342（L*W*H）
Kapacita	23.4AH	1C discharge
Platform Voltage	72V
Vypněte vypínací napětí	55V
Nabijte vypínací napětí	84V
Standardní nabíjení	<=10A
Standardní vybíjení	50A(continues)
Discharging current(MAX)	80A（10S）
Ochrana proti zkratu	ANO
Short-circuit protection recovery	Disconnect the load
Cycel Life	500th cycle>90% of 1st Cycle Capacity or 1000th cycle>80% of 1st Cycle Capacity,	25℃,Standard charging; Discharge:1C to 55V
Discharge Characteristics (by temperature)	55℃ ≥100% 25℃ =100% 10℃ ≥90% 0℃ ≥80% -10℃ ≥75% -20℃ ≥70	Discharge: CC 1C to 55V cut-off at each temperature(-20℃ 2.2V cut-off)
Storage Characteristics	Recoverable capacity≥85%	100%SOC, discharge 30min at 2C current then storage 28 days at 45℃, recoverable capacity will be tested at 25℃±2℃
Use Temperature	Charge：0 to 45℃ Discharge：-20 to 60℃

Popis výkonu produktu

Support OEM&ODM

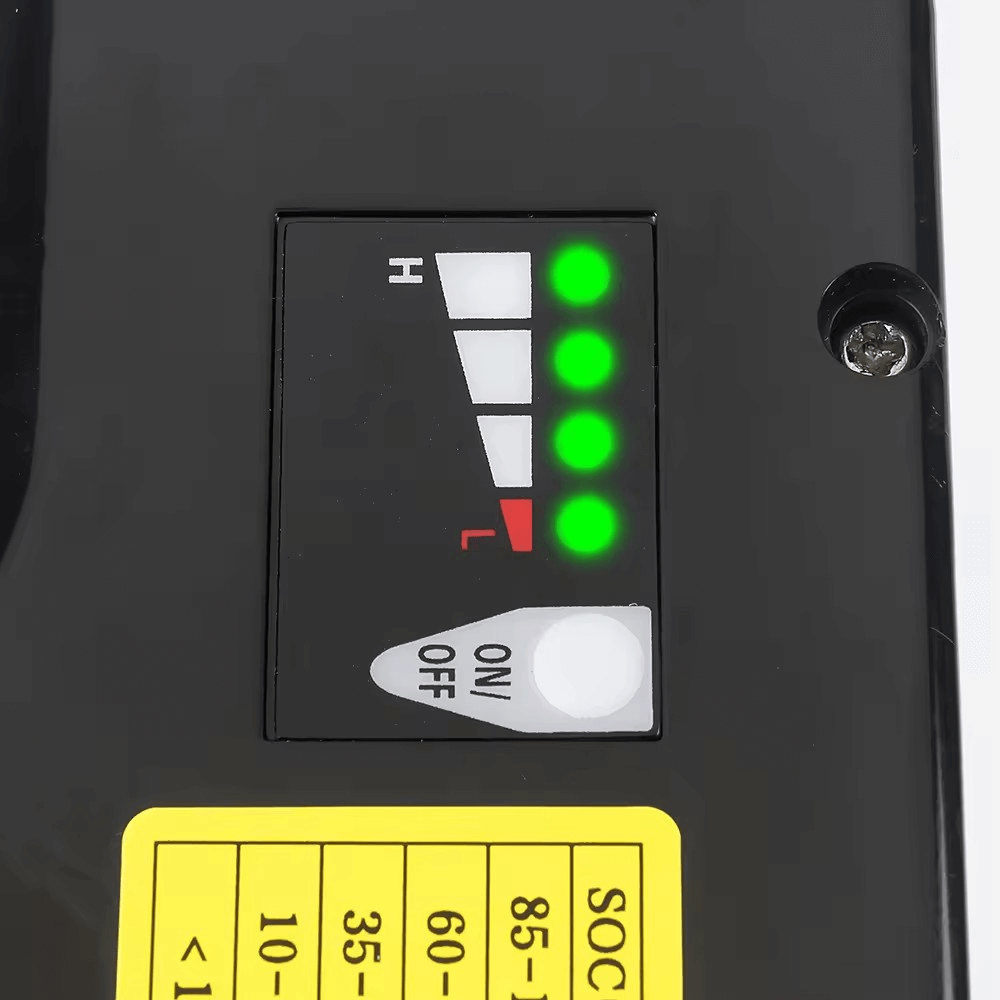

Vestavěný BMS：charge protection, discharge protection, over-current protection, temperature, support App control, LCD power display

Complete certification:The factory has passed ISO9001 certification，All products have passed IEC62133 test, before leaving the factory will passed aging test, vibration test, cyclic discharge test, high-speed load test, charge and discharge test.

Global Security Insurance：All lithium battery products have purchased global safety liability insurance, which is underwritten by Ping An Insurance Company of China.

Fast delivery：The production time for sample orders is 7-10 days, And production time for batch orders is based on order quantity. Lead time within 5000Pack is 30Days.

Quality assurance: Sign the quality assurance agreement. Any quality problem, free replenishment.

aplikace

Features of electric motorcycle battery:

1. Lighter weight, smaller size.
2. High temperature performance.
3. Extremely safe, no explosion, no fire under collision.
4. Strong over-discharge resistance and charge retention.
5. Strong charging acceptance and quick-charging capability.
6. Excellent large current discharge performance especially in startup and climbing.
7. Large capability and long life for all high power output applications.
8. Environmentally friendly non-toxic, non-contaminating, no rare metal.
9. Low self-discharge and good discharge performance at low temperature.

Naše továrna

Balení a doprava

FAQ

Q:Are you a manufacturer?

A:Yes, ALL IN ONE is a manufacturer.

Q:Can I have a sample order?

A:Yes, we welcome sample order to test and check quality.

Q:What about the lead time?

A:1.Sample needs 3-5 days

2. Official order,mass production time needs 2-4 weeks

Q:Do you have any MOQ limit?

A:1. For Samples,we have no MOQ.,1pc can be an order.

2.For wholesales,we have MOQ for better price, normally 100pcs.

Q:How do you ship the goods and how long does it take to arrive?

A: 1.For small quantity,we often ship by express, arrive time is about 3-10days to different countries.

2.For official order,suggest to ship by sea to save cost. To USA, arrive time is about 20-25days,to Europe,arrive time is about 25-30days.

Otázka: Jak postupovat s objednávkou?

A: 1.Let us know your requirements or application.

2.We quote according to your requirements or our suggestions.

3.Customer confirms the samples and places a deposit for formal order.

4.We arrange the production.

Q: Is it OK to print my logo on the product?

A:1.For small quantity order or retails, no customized service.

2.For wholesales,customized service is welcome, pls.send us your artwork.

Q: Which certificates do you have?

A: We have CE/FCC/ROHS/UN38.3/MSDS ...etc. Promise a good quality to our customers.

Q: How about warranty?

A: 1 year warranty
